Manage subcategories

United States

Merchants group similar items into categories and manage these through their Clover Merchant Dashboard and on their Clover devices. For example, in a restaurant, a merchant can create categories for Salads and Beverages. In the Clover Register app, merchants can view the categories and all items under those categories.

Merchants can optionally add subcategories to a category. They can assign or move items from a category to subcategories, and also manage subcategories on the Category detail page on the Merchant Dashboard. For example:

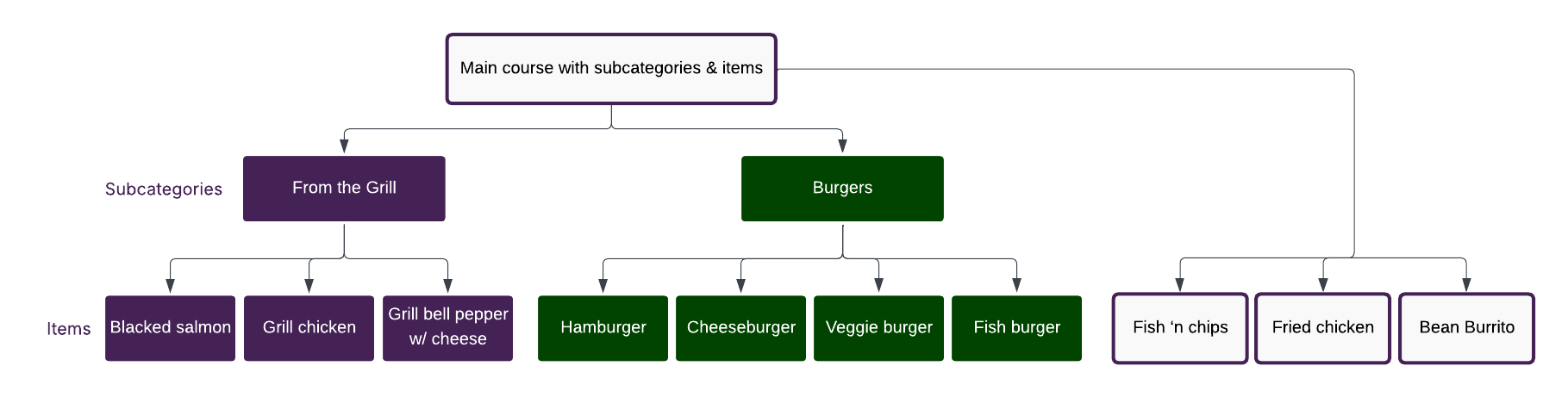

Category, subcategories, and items within the category and the subcategory

Before you begin

	Key points to note about adding and managing subcategories are:
Parent category and subcategory	A subcategory is optional and can only be created within a specific parent category. A parent category can have a maximum of 50 subcategories. A subcategory inherits the parent category's hex color code when defined.
Item and subcategory	An item can belong to both a category and its subcategories. You can create a new item to add to a subcategory or assign an item from the parent category to the subcategory. A subcategory can have a maximum of 4000 items. The default sort order for items and subcategories within a category is alphabetical: A to Z Subcategories are deleted when the parent category is deleted. When you delete a subcategory, all items assigned to it are reassigned to the parent category.

Key points to note about adding and managing subcategories are:

Parent category and subcategory

A subcategory is optional and can only be created within a specific parent category.

A parent category can have a maximum of 50 subcategories.

A subcategory inherits the parent category's hex color code when defined.

Item and subcategory

An item can belong to both a category and its subcategories. You can create a new item to add to a subcategory or assign an item from the parent category to the subcategory.

A subcategory can have a maximum of 4000 items.

The default sort order for items and subcategories within a category is alphabetical: A to Z

Subcategories are deleted when the parent category is deleted. When you delete a subcategory, all items assigned to it are reassigned to the parent category.

Manage subcategories on the Merchant Dashboard

Merchants can manage subcategories on the Merchant Dashboard. See Clover Help to Work with subcategories.

Manage subcategories with Clover REST APIs

Prerequisite

Generate a merchant-specific test API token in sandbox.

Create a subcategory

Send a POST request to /v3/merchants/{mId}/categories/{categoryId}/sub_categories.
Enter required information—mId, categoryId and name for the subcategory.
Set the Authorization header as Bearer token type, and enter the test API token.

In response, a unique subcategory id is generated, and the subcategory is placed within the parent category. By default, the sortOrder value is set as the last category in the Clover Register and Dining apps. For example, if you already have five subcategories, the new subcategory is sixth in the sort order.

Request and Response example—Create a subcategory

curl --request POST \
--url 'https://apisandbox.dev.clover.com/v3/merchants/{mId}/categories/{categoryId}/sub_categories' \
  --header 'Content-Type: application/json' \
  --header 'Authorization: Bearer {access_token}' \
  --data '{"name": "Greek Salad"}'

{
    "id": "86ZQYVJNF4WN0", //subcategory ID
    "name": "Greek Salad",
    "sortOrder": 1,
    "parentCategory": {
        "id": "QSNXTBRZNBMAY" //category ID
    },
    "deleted": false
}

Manage items in a subcategory

Merchants can assign existing items in a category to a subcategory or create new items and add them to subcategories. When an item is moved from a parent category to a subcategory, its association with the parent category is removed, and it becomes associated with the subcategory.

Add items to a subcategory

Send a POST request to /v3/merchants/{mId}/category_items.
Enter required information—mId, category id and item id.
Set the Authorization header as Bearer token type, and enter the test API token.

Request and Response example—Add items to a subcategory

curl --request POST \
  --url 'https://apisandbox.dev.clover.com/v3/merchants/{mId}/category_items' \
  --header 'content-type: application/json' \
  --header 'Authorization: Bearer {access_token}' \
  --data '{
    "elements": [
      {
        "category": {"id": "{categoryId}"},
        "item": {"id": "{item1Id}"}
      },
      {
        "category": {"id": "{categoryId}"},
        "item": {"id": "{item2Id}"}
      }
    ]
  }'

View items in a subcategory

Send a GET request to /v3/merchants/{mId}/items/{itemId}?expand=categories?limit=100.
Enter required information—mId and item id.

The response appears as follows:

If the API request includes expand=categories, the categories section contains both categories and subcategories linked to the item.
- Each subcategory includes a parentCategory field referencing its parent category by ID.
- For top-level categories, the parentCategory field is either absent or empty.
If the API request does not include expand=categories, the response does not contain any category or subcategory data.

See Apply filters and Use expandable fields for more information on working with filter and expand parameters in your requests.

Request and Response example—View items in a subcategory

curl --request GET \
--url 'https://apisandbox.dev.clover.com/v3/merchants/{mId}/items/{itemId}?expand=categories' \
--header 'content-type: application/json' \
--header 'Authorization: Bearer {access_token}'

{
    "id": "V0VCQ4DC668E0",
    "hidden": false,
    "available": true,
    "autoManage": false,
    "name": "Breakfast Burrito",
    "alternateName": "",
    "code": "",
    "sku": "",
    "price": 365,
    "priceType": "FIXED",
    "defaultTaxRates": true,
    "unitName": "",
    "cost": 0,
    "isRevenue": true,
    "stockCount": 0,
    "categories": {
        "elements": [
            {
                "id": "G21RWFFEW4QC2",
                "name": "Classic",
                "sortOrder": 11,
                "deleted": false
            },
            {
                "id": "FR6NENCE78EC6",
                "name": "DS-7711 catTest",
                "sortOrder": 4,
                "parentCategory": {
                    "id": "Speciality"
                },
                "deleted": false
            }
        ]
    },
    "modifiedTime": 1746637041000,
    "deleted": false
}

Create or delete associations between items and a category and its subcategories

Send a POST request to /v3/merchants/{mId}/category_items.
Enter required information—mId.
Use expandable field: [items] to enter the items to associate with the categories and subcategories.
To delete an association, enter the delete=true.
Set the Authorization header as Bearer token type, and enter the merchant's API token.

Request example—Associate items with a category and its subcategories

curl --request GET \
--url 'https://apisandbox.dev.clover.com//v3/merchants/{mId}/category_items?expand=items' \
--header 'content-type: application/json' \
--header 'Authorization: Bearer {access_token}'

See Apply filters and Use expandable fields for more information on working with filter and expand parameters in your requests.
